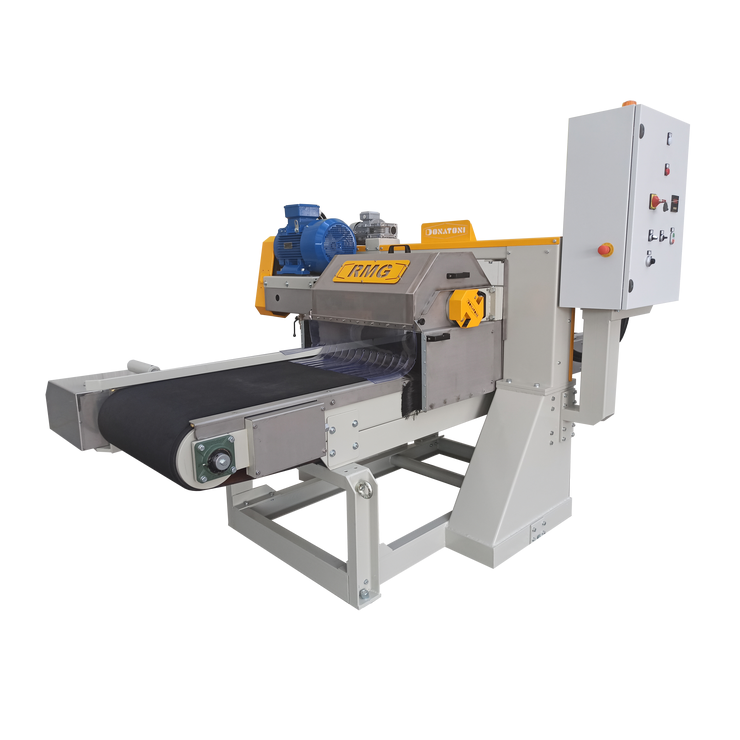

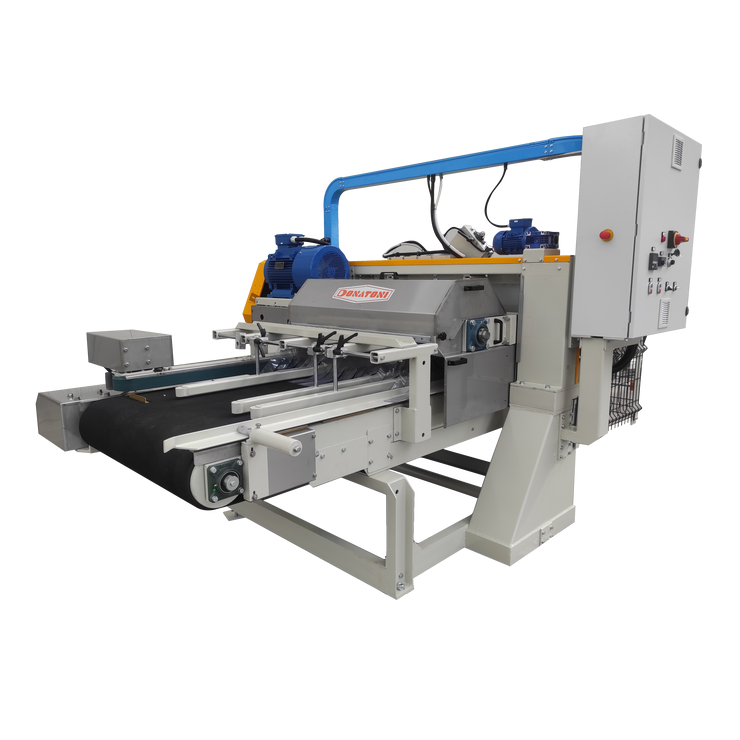

RMG
Monospindle multiblade trimming machine

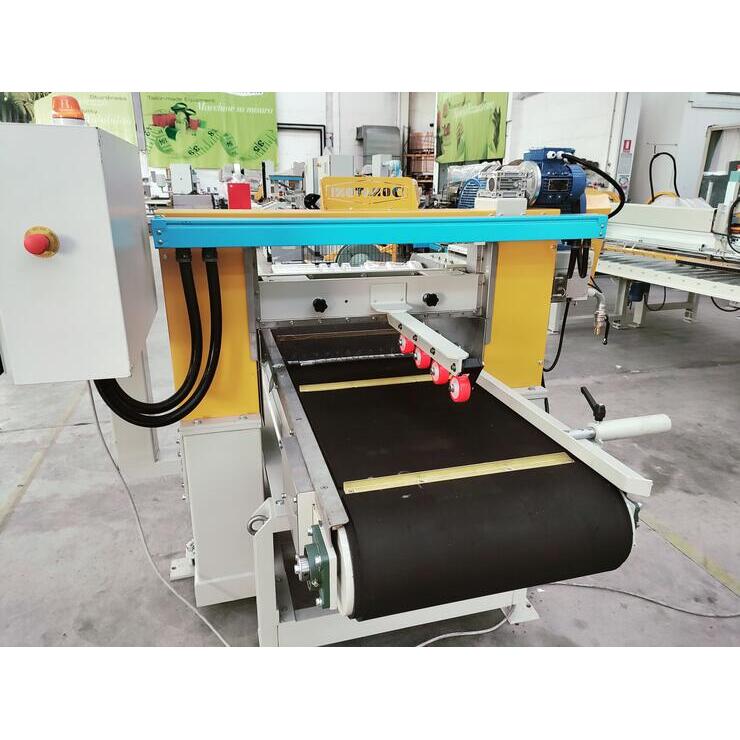

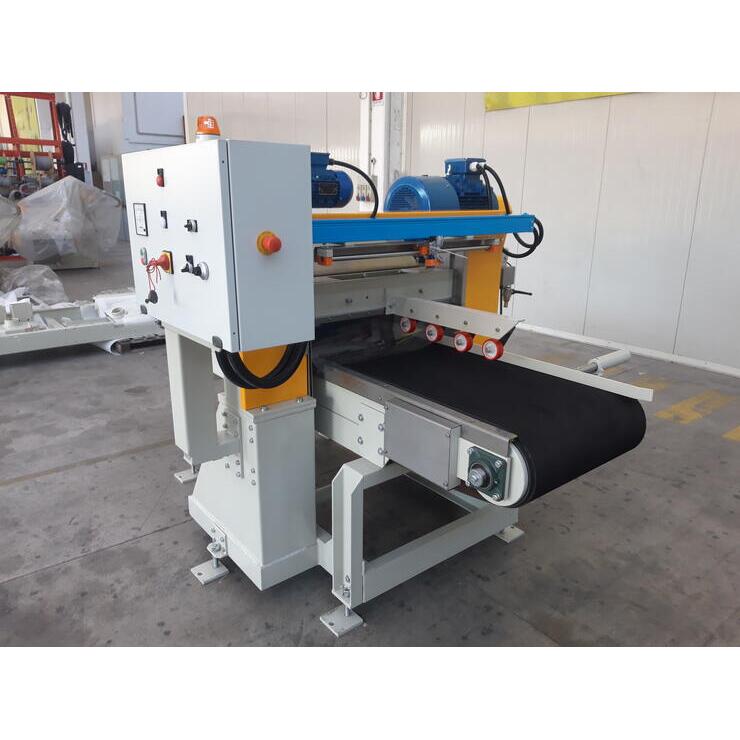

The DONATONI trimming machine type RMG is designed for single-pass longitudinal cutting of materials of different kinds, of various thicknesses, of different sizes.
Multiblade
Semi-Automatic
Monospindle
.jpg "Mattone - Bricks")

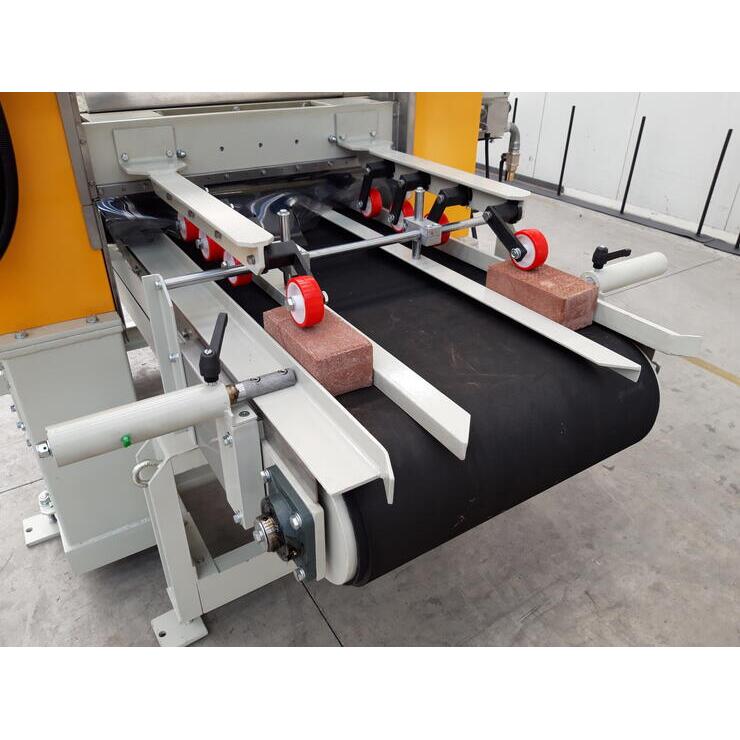

Mattone - Bricks
Mattone - Bricks
Mattone - Bricks
| TYPE | RMG/06 | RMG/10 |
|---|---|---|
| Useful cutting width | 610 mm | 1000 mm |
| Maximum cutting thickness | MAX 50 mm (disco 300) / MAX 100 mm (disco 400) | MAX 50 mm (disco 300) / MAX 100 mm (disco 400) |
| Blade diameter | MIN 300 mm (foro diam. 50 mm)/ MAX 400 mm (foro diam. 50 mm) | MIN 300 mm (foro diam. 60 mm)/ MAX 400 mm (foro diam. 60 mm) |
| Type of table | A nastro / Belt | A nastro / Belt |
| Spindles motor power | 11 kW | 15 kW |
| Installed power | 13 kW | 17 kW |
| Water consumption | 60 l/min | 90 l/min |
| Overall dimensions | 2850 x 2150 x 1900/h mm | 2850 x 2650 x 1900/h mm |
| Machine weight | 1,6 t circa | 2 t circa |
Features of RMG:
- Stability and cutting accuracy;
- Belt table;

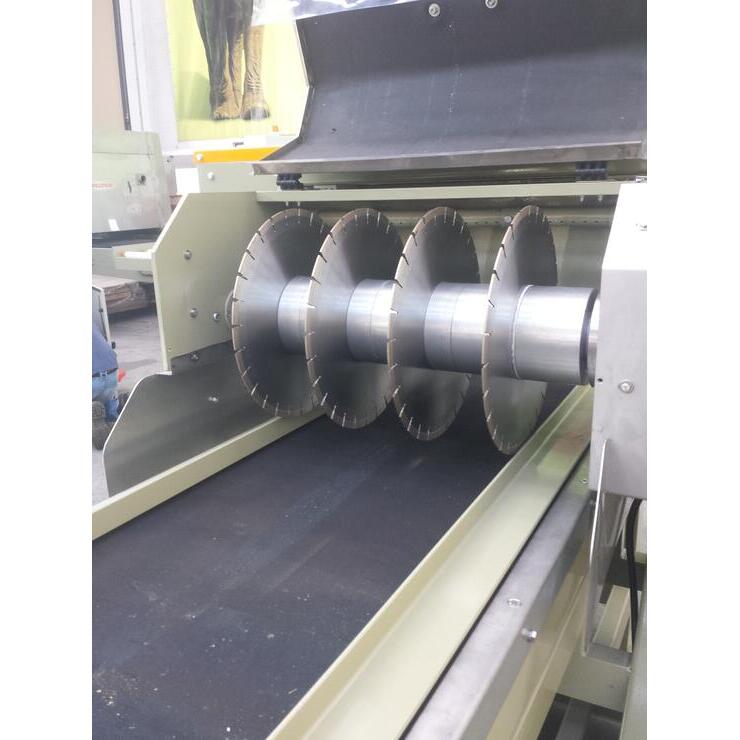

- Possibility to carry several blades;

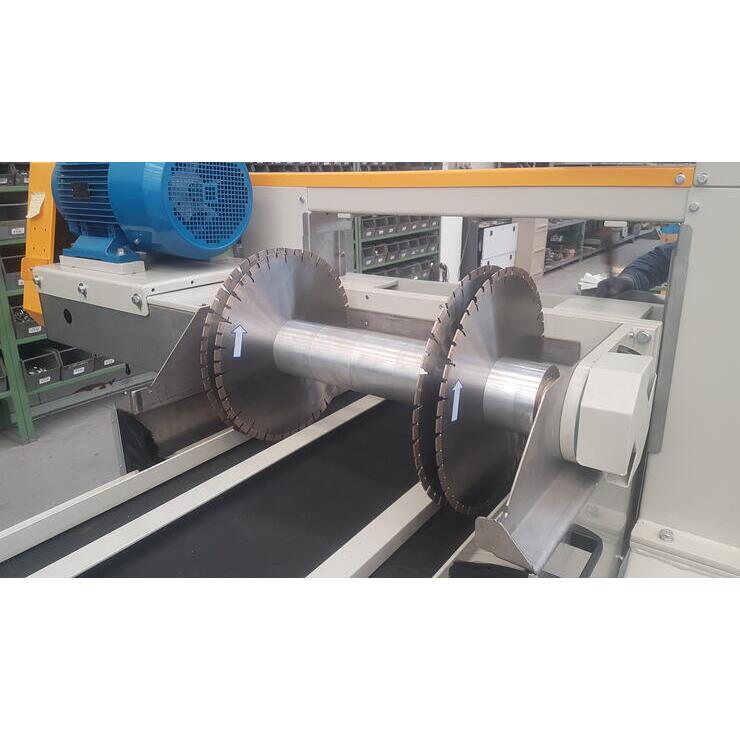

- Blade-carrying shaft with shims that allow cuts at different sizes, even very small ones;
- Vertical stroke for the adjustment of cutting depth, blade diameter and blade wear;
- Belt-driven power transmission (no direct power transmission to motor);

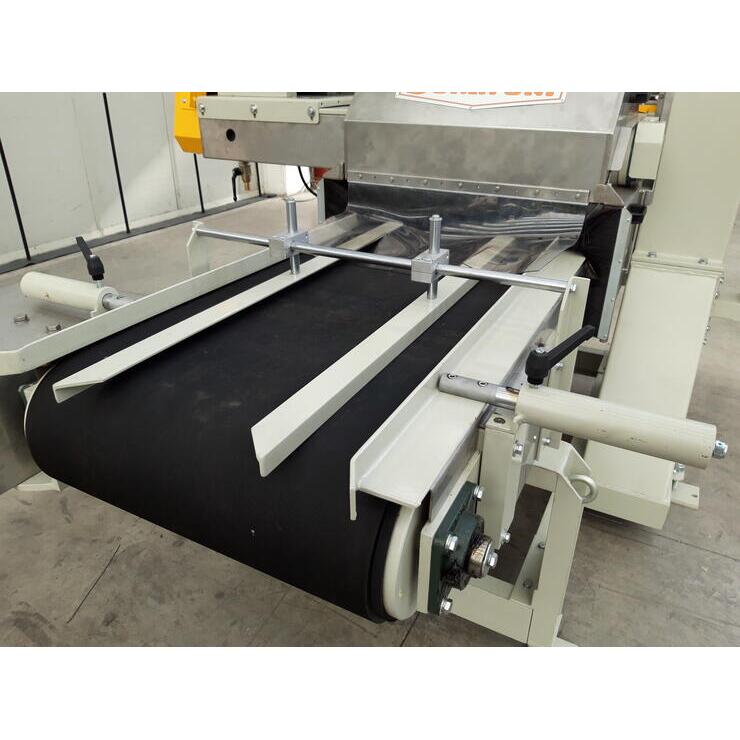

- Guide to maintain the material aligned while cutting.
- Stability and cutting accuracy;
- Belt table;
- Possibility to carry several blades;
- Blade-carrying shaft with shims that allow cuts at different sizes, even very small ones;
- Vertical stroke for the adjustment of cutting depth, blade diameter and blade wear;
- Belt-driven power transmission (no direct power transmission to motor);
- Guide to maintain the material aligned while cutting.
